DXN Portable Hybrid Ultrasonic Flow Meter
Chúng tôi cam kết
- Sản phẩm mới 100% chính hãng
- Bảo hành toàn quốc, miễn phí tại nơi sản xuất
- Giá cạnh tranh nhất thị trường
- Giao hàng toàn quốc, miễn phí > 30km
- Thanh toán thuận tiện
CÔNG TY CỔ PHẦN THIẾT BỊ NÂNG CHUYỂN & ĐO KIỂM
Địa chỉ : Số 12/942, đường Láng, quận Đống Đa, Hà Nội
Tel : 024.8582.2159 – Fax : 024.3791.7621
Website : lavme.vn – Email : email@example.com
Contact : Kỹ sư Hứa Anh Tuấn

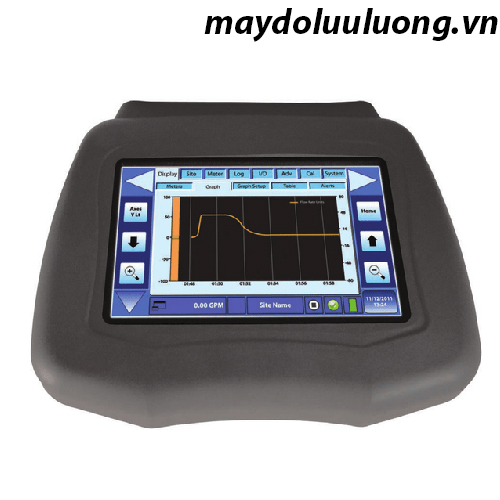

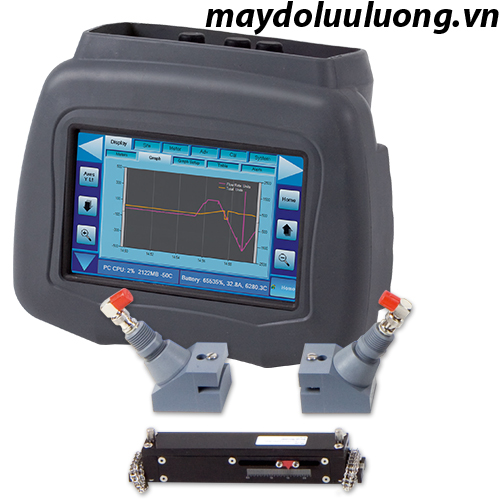

The Dynasonics® DXN Portable Hybrid Ultrasonic flow meter is a powerful tool used for troubleshooting flow issues, whether you want to quickly verify the flow reading of another meter or to data log flow system values over an extended period of time.
Size Range 1/2…120 in.
Temperature Range -40…350 °F
Flow Range 1…40 fps
The Dynasonics DXN Portable Hybrid Ultrasonic Flow Meter is a true hybrid instrument, capable of measuring liquid flow with multiple technologies to provide accurate readings.
Application Flexibility. Equipped to read Doppler, transit time and liquid thermal (heat energy) flow and will automatically choose the type of flow measurement based on the signal quality during operation.
Streamlined Installation. Can be installed and set up by a single individual by clamping the meter onto the pipe—does not require operations to be drained or shut down.
Advanced Features. Equipped with a touchscreen interface, full-color graphing, wizard-based start-up configuration, USB connectivity and Modbus TCP/IP connectivity.
No comments yet
Sản phẩm liên quan

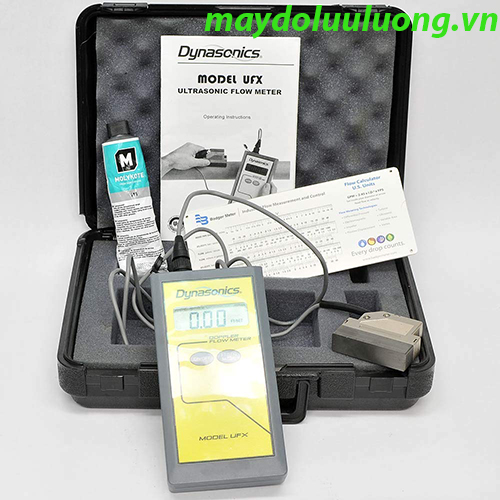

Ultrasonic flow meters using the doppler principle requires that the liquid be either solids-bearing or aerated at a minimum of 100 ppm. The product utilizes a single, hand-held transducer which is placed on the outside of metal or plastic pipe
